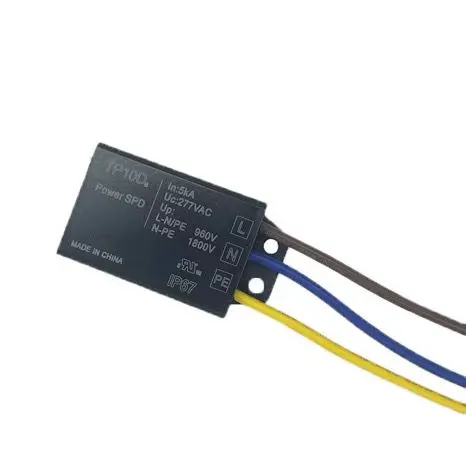

TP10D AC Surge Protector Device Lighting Power Surge Protectors 220V Power Protector

Short Description:

Ordering code: TP10D

 Rated operating voltage: 277 V AC

Max. Continuous voltage: 277 V AC

Max. discharge current (8/20μs) (Imax)：10KA

Nominal discharge voltage(1.2/50μs) (Vn):10KV

**Support customization

Electrical specifications

TP10DB is a power surge protector. It is used for surge protection of commercial lighting power sources such as street lighting (ClassI, ClassII), landscape lighting. It is also used for surge protection of power ports such as security, electrical appliances, and sockets.

TP10DB has a fully sealed enclosure that is fire, water, dust and IP67 rated. The lightning protection device adopts full mode protection, adopts UVT technology, and has leakage current and freewheeling interruption function. The product is compact and comes with L, N and PE cables for easy installation and application.

The product's maximum protection lightning current is 10kA, which can withstand 10kV surge voltage shock.

Dimension

Dimensional drawing in mm

The Others

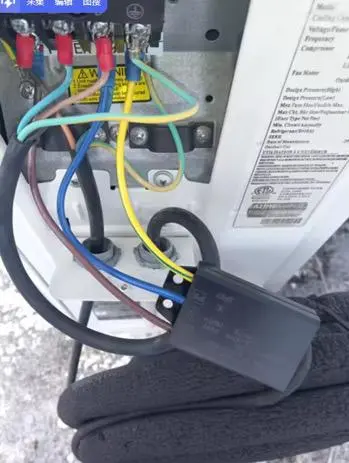

Application/ Inatallation Schematic

Applications

• Outdoor and Commercial LED Lighting

• Roadway lighting

• Traffic lighting

• Digital signage

• Security power supply

• Wash wall lighting

• Parking garage/lot lighting

• Flood lighting

• Tunnel lighting

• Street lighting

Features

•Nominal discharge voltage: 10kV, 1.2/50μs;

• Maximum discharge current: 10kA, 8/20μs;

•Executive standard: UL14494th;

•Parallel SPD equipment;

•UVT ultra-low voltage technology, more adequate protection;

•With lead wire for easy connection;

•Ultra-thin shape: 60 × 34.5 × 13.85, easy to reset;

•IP67 waterproof and dustproof;

•Installation of Class I and Class II lamps that meet the rated voltage of 110 to 277 VAC;
